Expert concrete scanning and service locating

MACS specialises in premium concrete scanning and service locating services that ensure the integrity and safety of your construction projects.

Using advanced ground penetrating radar (GPR) technology and imaging systems, our concrete scanning services provide accurate and non-destructive insights to the composition of concrete as well as anything that may be hidden within or beneath it. Concrete scanning is a crucial step to take before you cut, core, or drill into a concrete structure to identify any potential hazards that could prove costly and dangerous.

Service locating refers to the process of identifying and mapping out the locations of mains and service in outside areas, for piece of mind while excavating or other civil construction needs. Using electromagnetic induction, advanced GPR technology and 10+ years’ of experience, our locating services provide accurate and non-destructive insights to your work area.

Our team is committed to delivering reliable data, allowing you to make informed decisions, prevent costly mistakes, and enhance project efficiency. Our services include:

Get a quote

First name *

Last name *

Email *

Mobile

Service type

Concrete scanning

Service locating

Service mapping

Reinforcement mapping

Void detection

Structural scanning

Other

Other - please specify

Region

Site Location

Max depth

Other

Please specify

Do you require a site inspection?

Please select relevant site info

EWP required

Ladder

Inverted only

Please provide a summary of your scope

Attach file

Maximum file size: 5 MB

Allowed file types - pdf, jpg, gif, png

Head Office

Kwinana

Perth CBD

Canningvale

Karratha

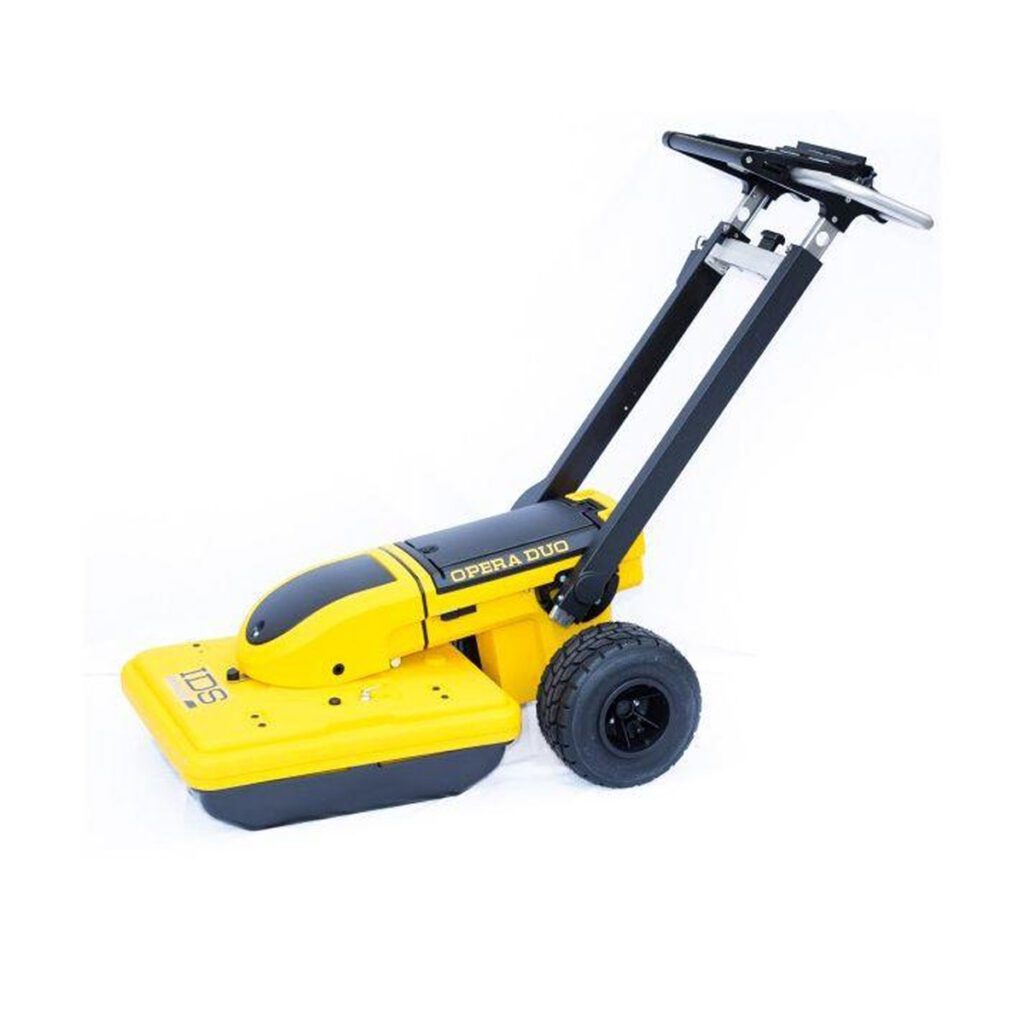

Opera Duo GPR

Main features include:

Superior maneuverability: A large, comfortable handle to make pushing and pulling easier, large wheels for better control and a balanced weight distribution to offer minimum resistance.
Robustness: Engineered and built to withstand the harshest field conditions, the Opera Duo is suitable for heavy use in every type of terrain.
Data quality: Large bandwidth offering the highest resolution; the largest dynamic range for the best penetration depth; and dual-head sensor integrating ultra-wide band antennas (250MHz and 700MHz).
Intuitiveness: Just click the start button to receive the best performance in every soil condition. No need to perform calibration or adjust any other manual settings.
Results delivered on site: The system tracks the position of the radar and marks targets automatically. All of the acquired data can be exported to CAD and GIS, and reports can be produced directly on site.
Innovative in data processing: Opera Duo leverages IQMaps, the post-processing software for faster and smarter GPR data analysis.

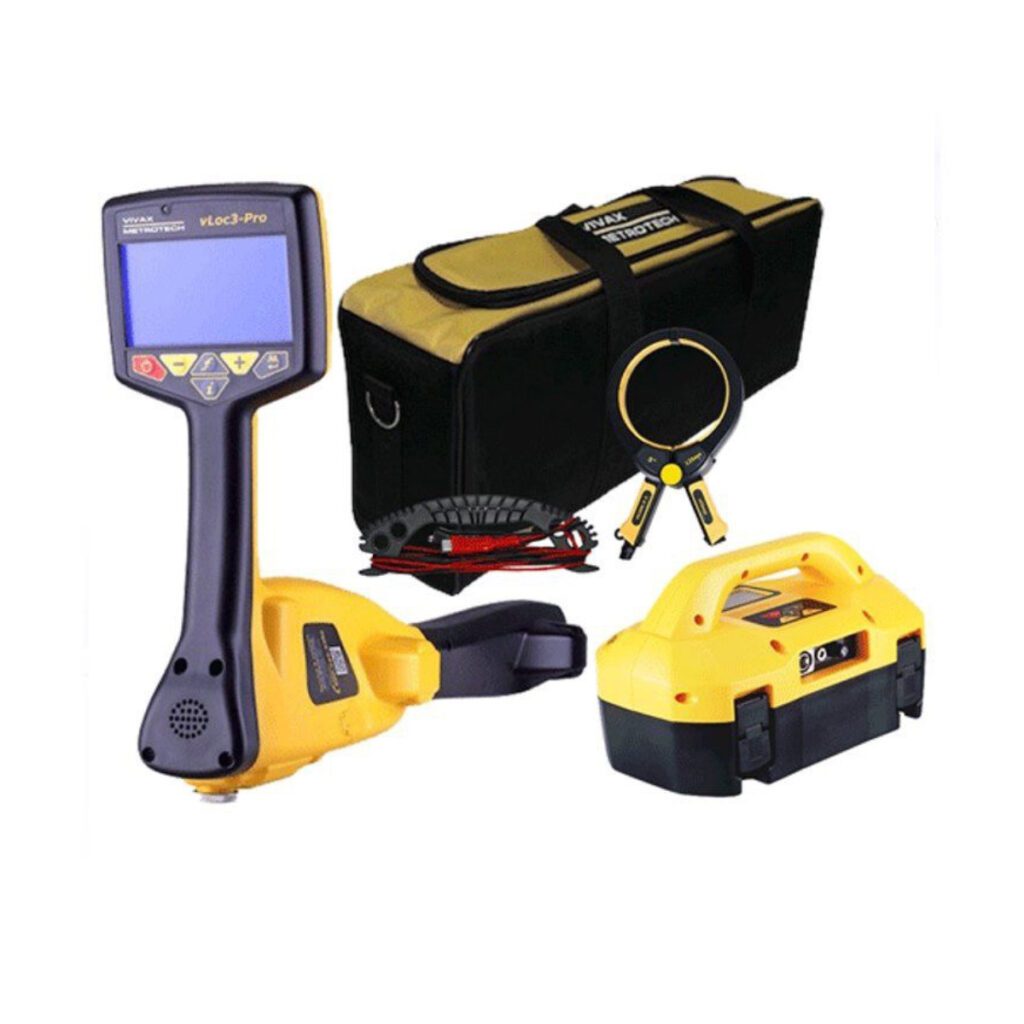

vLoc3-Pro Utility Locator

The vLoc3-Pro utility locator introduces new innovative tools for locating buried utilities, assuring damage prevention while gathering information for analysis. With two sets of screened 3D antennas, signal distortion is easily detected and displayed on the bright full color display. Along with classic locate screens, the vLoc3 series locators offer new locate perspective screens of Vector Locate for fully automatic non-walk over locating, Transverse Graph showing both peak and null simultaneously providing immediate measurement of signal distortion, Plan View showing the relative orientation of the cable at any angle, and a new graphical Sonde screen with guidance arrows leading to the sonde location even when it is vertical.

The highly user configurable vLoc3 series contains eight passive locate modes, fault-find mode, SD (showing direction of outgoing current), and a range of configurable frequencies from 16Hz to 200 kHz. Visual and mechanical vibration alerts can also be configured by the user providing warnings for shallow depth, overload, overhead cables, and excessive swinging. Plug-in-play options for the receiver include optional Bluetooth module usable with external GPS devices and MLA (marker locator adapter) to locate buried markers.

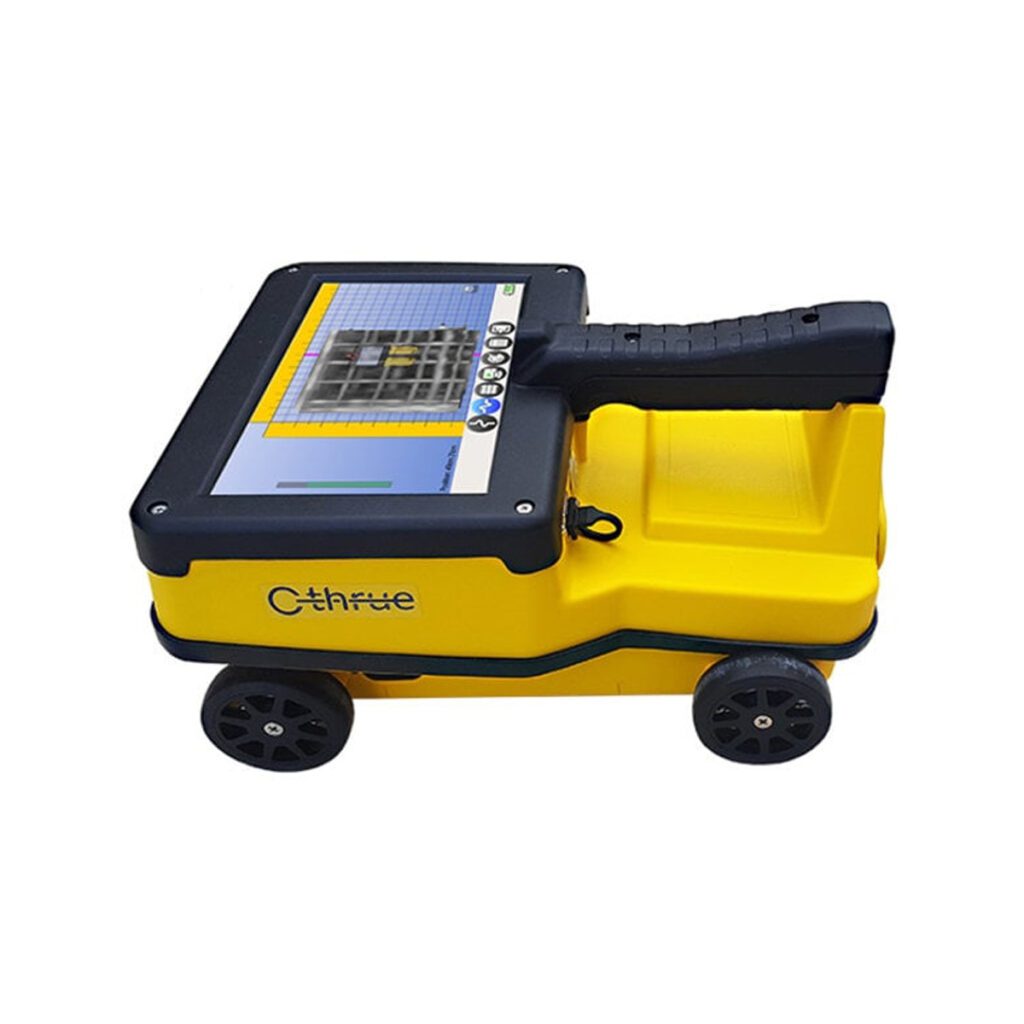

C-thrue Concrete Scanner

C-thrue – Advanced GPR software to process data in the field

The C-thrue software makes possible what was a dream until now! With just the press of a button, the system automatically recognises and discriminates rebars and voids in concrete structures.

The software is specifically developed and suitable for in the field analysis:

Automatic system calibration for an easy and quick set-up and start
Automatic recognition of rebars and voids in concrete structures
Digital on-site representation of data and targets through Augmented Reality
Real time visualisation of 3D radar tomography
Real time data sharing enabling double data visualisation and high resolution imaging both on product display and remote desktop connection to external device
Capability to mark targets within the software
Fully integrated with GRED HD post-processing software
Ability to export full survey report
